SS 304 storage tank
Capacity: 47000 litre
Possibility to insulate 50-100mm rock wool
Finishing on top of insulation aluminum pile sheet – stainless steel or aluminum segment sheet
Year of construction
2006
State
Used
Manufacturer
Ritter GMBH
Quantity
2
Capacity size
47,000 liter
Material
SS 304
Empty weight
4,000 kg
Working pressure
0 bar
Foundation
SS legs
Number of legs
3
Modell bottom head
Conical
Modell top head
Conical

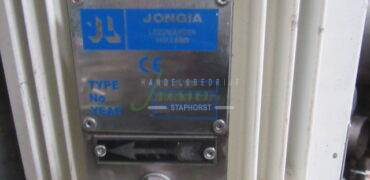

Brand
Jongia
Type
Propeller
Kind
Propeller
Diameter propeller
410 mm
Number of agitators
1
Location drive
On top
Speed
490 rpm

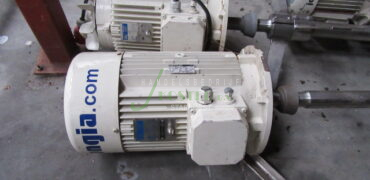

Engine power
3.7 kW
Inside diameter
3,520 mm
Outside diameter
3,600 mm
Cylindrical height
4,500 mm
Total height
7,550 mm
Leg length
1,750 mm
Outlet height
900 mm
Wall thickness bottom
4 mm
Wall thickness cylinder
3 mm
Wall thickness roof
4 mm
Outlet
80 mm
Inlet
80 mm
Breather vent
300 mm
Type of breather vent
With cap
CIP connection
30 mm
Type of CIP
Spray ball
Manhole
450 mm
Place manhole
On top
Handelsbedrijf Koster is an internationally active company that buys and sells used SS tanks and machines for the foodstuffs and chemicals industries. We have a large storage site where we always have around 600 tanks in stock. We also have a modern workshop where we can adapt tanks to the requirements of the customer.
