SS 316 heatable tank with agitator
Capacity: 6400 litres
Year of construction
2019
State
Used

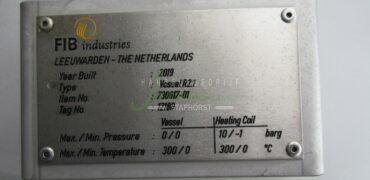

Manufacturer
FIB
Quantity
1
Capacity size
6,400 liter
Material
SS 316
Working pressure
0 bar
Foundation
SS legs
Number of legs
3
Modell bottom head
Round
Modell top head
Round
Brand
Alfred Rickert
Type
AR100u
Kind
Propeller
Diameter propeller
620 mm
Number of agitators
1
Location drive
On top
Speed
1,410 rpm
Engine power
3 kW
Inside diameter
1,500 mm
Cylindrical height
3,600 mm
Total height
5,700 mm
Leg length
2,070 mm
Outlet height
650 mm
Outlet
60 mm
Inlet
50 mm
Breather vent
76 mm
Type of breather vent
With bend pipe
Manhole
495 mm
Place manhole
On top
Type of shell
COIL
Heated surface
6.7 m2
Working pressure water
10/-1 bar
Max. temp. shell
300/0 °C
Handelsbedrijf Koster is an internationally active company that buys and sells used SS tanks and machines for the foodstuffs and chemicals industries. We have a large storage site where we always have around 600 tanks in stock. We also have a modern workshop where we can adapt tanks to the requirements of the customer.
