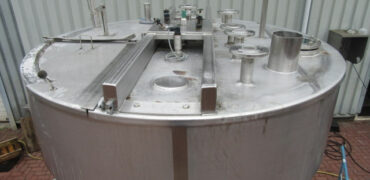

SS 316 insulated tank with agitator and double jacket
Capacity: 4000 liter
State
Used
Manufacturer
Altermij De Gouwe
Quantity
1
Capacity size
4,000 liter
Material
SS 316
Working pressure
0 bar
Foundation
SS legs
Number of legs
4
Modell bottom head
Round
Modell top head
Flat
Insulation thickness
50 mm
Insulation material
Rockwool
Insulation clad
SS clad
Cylinder
Yes
Bottom head
Yes
Top head
No
Kind
Propeller
Diameter propeller
310 mm
Location drive
On top
Inside diameter
1,600 mm
Outside diameter
1,770 mm
Cylindrical height
2,000 mm
Total height
3,150 mm
Leg length
650 mm
Outlet height
500 mm
Outlet
100 mm
Inlet
40 mm
Breather vent
125 mm
Type of breather vent
With bend pipe
Manhole
600x500 mm
Place manhole
On top
Heated surface
7.5 m2
Working pressure steam
1.5 bar
Working pressure water
3 bar
