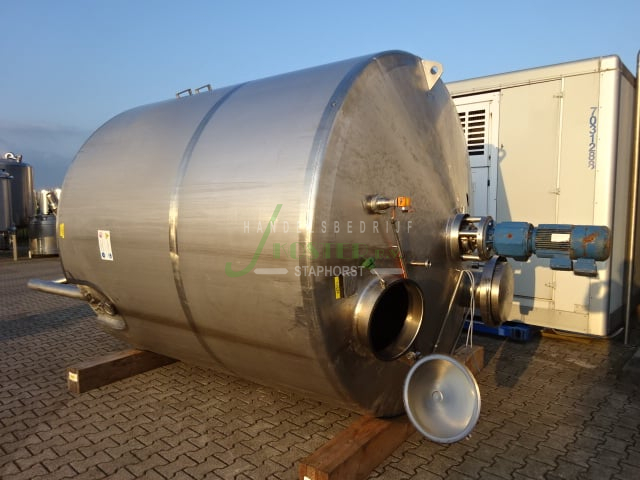

SS tank with agitator, capacity 10.000 liter
Year of construction
1986
State
Used
Manufacturer
Ritter
Quantity
1
Capacity size
10,000 liter
Material
SS 304
Empty weight
1,800 kg
Working pressure
0 bar
Foundation
SS legs
Number of legs
3
Modell bottom head
Conical
Modell top head
Conical
Kind
Propeller
Diameter propeller
90 mm
Number of agitators
1
Location drive
On top
Speed
88 rpm
Engine power
2,2 kW
Inside diameter
2,300 mm
Outside diameter
2,400 mm
Cylindrical height
2,600 mm
Total height
4,550 mm
Leg length
100 mm
Outlet height
470 mm
Wall thickness bottom
2,7 mm
Wall thickness cylinder
2 mm
Outlet
100 mm
Inlet
100 mm
Breather vent
290 mm
Type of breather vent
With cap
CIP connection
25 mm
Type of CIP
Spray ball
Manhole
430 mm
Place manhole
On top
Handelsbedrijf Koster is an internationally active company that buys and sells used SS tanks and machines for the foodstuffs and chemicals industries. We have a large storage site where we always have around 600 tanks in stock. We also have a modern workshop where we can adapt tanks to the requirements of the customer.
